250HW-8 horizontal mixed flow pump

The 250HW-8 horizontal mixed flow pump is a single-stage single-suction volute centrifugal pump. This type of pump is suitable for transporting clean water or other liquids with physical and chemical properties similar to water. The transported body temperature should not be higher than 50℃. GF is used in farmland irrigation and drainage, industrial and urban water supply and drainage and other occasions.

250HW-8 type horizontal mixed flow pump parameters

Flow rate: 540m3/h
Head: 8 meters
Motor power: 185.kw
Speed: 1180r/min
Import and export caliber: 250mm

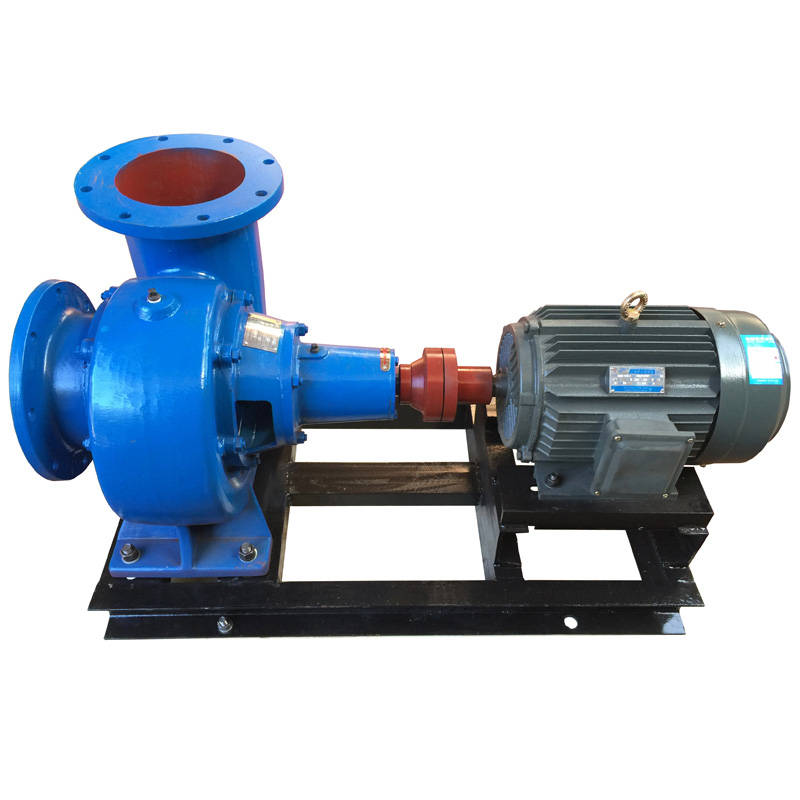

250HW-8 horizontal mixed flow pump

Model meaning of 250HW-8 horizontal mixed flow pump

250—The inlet and outlet diameter of the water pump mm
HW—Horizontal volute mixed flow pump
8-Design point head of the pump

The advantages of 250HW-8 horizontal mixed flow pump

Simple structure, reliable use, convenient decoration, high efficiency, small size and light weight.

Rotation direction of 250HW-8 horizontal mixed flow pump

Looking at the inlet of the water pump, the impeller generally rotates counterclockwise.

Post time: 2022-01-06
