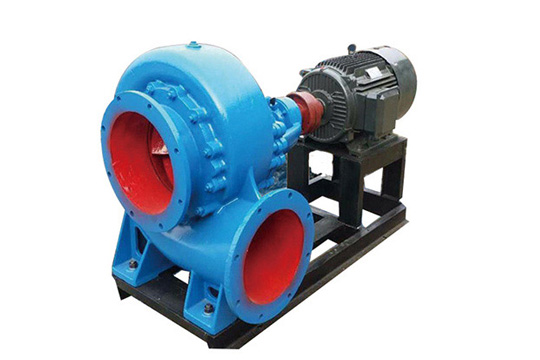

HW Series Mixed Flow Pump
Type HW pumps are horizontal, single stage, single suction volute mixed flow pumps. The pumps are designed to handle clean water or any other kinds of liquids with similar physical and chemical properties of water, so they are widely used for agricultural irrigation and drainage. The temperature of the liquid should be lower than 50 ℃.
HW Series Mixed Flow Pump Features:
simple structure, reliable operation, easy maintenance, high efficiency, small body and light weight.
Performance: 70-9000 m3/h, head 4-22 m.
This single stage mixed flow pump is applicable for transporting clear water, pulp with the concentration no more than 3%, solution with PH value from 3-10 and fiber length no more than 80mm, as well as other liquid with the physicochemical property similar to that of water. The liquid temperature shall be no more than 50℃.
HW Series Mixed Flow Pump Application
Our horizontal mixed-flow pump can be widely seen in irrigation, wastewater treatment system and municipal water supply and drainage system. Additionally, our company can also offer low-head mixed-flow pump, which features large flow, low energy consumption and high efficiency. It is particularly suitable for pump station construction and renewal.
HW Series Mixed Flow Pump Technical Parameters
| Model | Flow | Head （m） |
Speed (r/min) |
Efficiency % |
Power（KW） | NPSH
（NPSH） |
Engine Model |
||
| L/S | m3/h | Shaft | Matched power | ||||||
| 150HW-5 | 38 50 60 |
137 180 216 |
6.1 5.0 3.7 |
1450 | 75.0 82.0 74.0 |
3.03 2.99 2.94 |
4 | 2.7 | Y112M-4 |
| 150HW-8 | 38 50 60 |
137 180 216 |
8.7 8.0 6.8 |
1450 | 75.0 82.0 78.0 |
4.32 4.78 5.13 |
5.5 | 2.7 | Y132S-4 |
| 150HW-12 | 38 50 60 |
137 180 216 |
15.3 12.5 9.7 |
2900 | 75.0 82.0 74.0 |
7.60 7.47 7.71 |
11 | 5.0 | Y160M-2 |
| 200HW-6 | 100 | 360 | 6.15 | 1450 | 82.0 | 82.0 | 7.5 | 4.0 | Y132M-4 |
| 200HW-8 | 75 100 120 |
270 360 432 |
9.6 8.0 6.0 |
1450 | 76.0 83.5 75.0 |
9.29 9.39 9.41 |
11 | 4.0 | Y160M-4 |
| 200HW-12 | 75 100 120 |
270 360 432 |
13.5 12.5 10.8 |
1450 | 76.0 83.5 75.0 |
13.06 14.68 16.94 |
18.5 | 4.0 | Y180M-4 |
| 250HW-8 | 113 150 180 |
407 540 648 |
9.6 8.0 6.0 |
1450 | 77.0 84.7 76.0 |
7.67 7.78 7.74 |
18.5 | 4.0 | Y180M-4 |
| 250HW-12 | 113 150 180 |
407 540 648 |
13.5 12.5 10.8 |
1450 | 77.0 84.0 76.0 |
17.4 19.8 21.0 |
22 | 4.0 | Y180L-4 |
| 250HWG-8 | 93 123 148 |
335 444 533 |
6.5 5.4 4.1 |
970 | 77.0 84.0 76.0 |
7.67 7.78 7.74 |
11 | 2.7 | Y160L-6 |
| 113 150 180 |
407 540 648 |
9.6 8.0 6.0 |
1180 | 77.0 84.0 76.0 |
13.81 14.01 13.93 |
18.5 | 4.0 | ||
| 139 184 221 |
500 664 796 |
14.5 12.1 9.1 |
1450 | 77.0 84.0 76.0 |
25.60 26.00 25.90 |
30 | 6.4 | Y200L-4 | |
| 300HWG-5 | 220 | 792 | 5.0 | 970 | 83.0 | 12.99 | 15 | 4.0 | Y180L-6 |
| 300HWG-8 | 165 220 264 |
594 792 950 |
9.6 8.0 6.0 |
970 | 78.0 85.0 77.0 |
19.90 20.30 20.10 |
22 | 4.0 | Y200L2-6 |
| 124 166 199 |
447 596 715 |
5.4 4.5 3.4 |
730 | 78.0 85.0 77.0 |
8.48 8.65 8.57 |
11 | 3.0 | Y180L-8 | |
| 300HWG-12 | 165 200 264 |
594 792 950 |
13.5 12.5 10.8 |
1450 | 82.0 85.0 79.0 |
26.62 31.72 35.37 |
37 | 4.0 | Y250S-4 |
| 350HWG-8 | 186 207 228 |
670 745 819 |
5.2 4.4 3.7 |
730 | 85.0 85.5 81.5 |
11.16 10.44 10.15 |
15 | 4.0 | Y200L-8 |
| 250 278 306 |
900 1000 1100 |
9.4 8.0 6.7 |
980 | 85.0 85.5 81.5 |
27.10 25.50 24.66 |
30 | 5.0 | Y225M-6 | |
| 400HW-7 | 300 350 380 |
1080 1260 1368 |
7.8 6.8 6.2 |
730 | 84.0 86.0 84.0 |
27.31 27.13 27.50 |
30 | 4.0 | Y225M-8 |
| 403 470 510 |
1450 1692 1836 |
14.1 12.3 11.2 |
980 | 84.0 86.0 84.0 |
66.32 65.90 66.67 |
75 | 5.0 | JS115-6 Y315S-6 |
|
| 400HW-10 | 305 389 478 |
1098 1400 1720 |
11.5 9.9 7.5 |
730 | 83.0 86.0 83.5 |
41.43 43.88 42.07 |
55 | 4.0 | JS115-8 Y315S-8 |
| 400HW-10C | 409 522 641 |
1474 1880 2309 |
20.7 18.0 13.6 |
980 | 83.0 86.0 83.5 |
100.10 107.16 102.42 |
110 | 5.0 | Y315S-6 |
| 500HW-6 | 469 550 606 |
1690 1980 2180 |
7.6 6.2 5.3 |
580 | 83.4 87.0 80.4 |
41.9 38.4 39.1 |
55 | 5.5 | Y315M-10 JS116-10 |
| 591 692 762 |
2127 2492 2744 |
12.0 9.8 8.4 |
730 | 83.4 87.0 80.4 |
83.4 76.4 78.1 |
90 | 6.0 | Y315L1-8 JS125-8 |
|
| 500HW-7 | 561 666 750 |
2020 2400 2700 |
9.0 7.0 5.5 |
730 | 82.0 85.0 81.0 |
60.4 53.8 49.9 |
80 | 4.0 | JS117-8 |
| 650HW-5 | 736 920 1000 |
2650 3312 3600 |
7.1 5.1 4.0 |
485 | 86.0 85.0 79.0 |
60.0 54.1 49.6 |
75 | 5.5 | |
| 896 1120 1216 |
3224 4032 4379 |
10.6 7.5 5.9 |
590 | 86.0 85.0 79.0 |
108.2 96.89 89.06 |
115 | 6.0 | JS127-10 | |
| 650HW-7 | 850 944 1100 |
3060 3400 3960 |
7.4 6.5 5.0 |
450 | 85.0 88.0 85.0 |
72.5 68.4 63.4 |
90 | 5.3 | |
| 915 1017 1185 |
3295 3663 4244 |
8.6 7.6 5.9 |
485 | 85.0 88.0 85.0 |
90.8 86.1 80.2 |
100 | 5.5 | JS137-12 | |
| 650HW-10C | 889 1111 1389 |
3200 4000 5000 |
15.8 14.0 10.4 |
590 | 81.0 88.0 85.0 |
170.0 173.3 166.6 |
180 | 6.0 | JS138-10 |
| 650HW-10 | 738 923 1154 |
2658 3322 4153 |
10.9 9.7 7.2 |
490 | 81.0 88.0 85.0 |
97.4 99.7 95.8 |
115 | 5.5 | |
