90KW submersible pump in Ethiopia

Ethiopia customer order:

spec for 6 inch submersible pump with 6 inch outlet working for high capacity like 30l/s and above 200m head

Shenlong Pump supply:

According to customer request, we recommend you pump 250QJ100-198-90KW.

The pump capacity is 30l/s when the head is 200m. And the motor power should be 90kw.

We will provide you 6inch outlet .

The pump material could be decided by you, if it’s for clean water , cast iron is suitable. If you need better material , we recommend stainless steel 304 or 316.

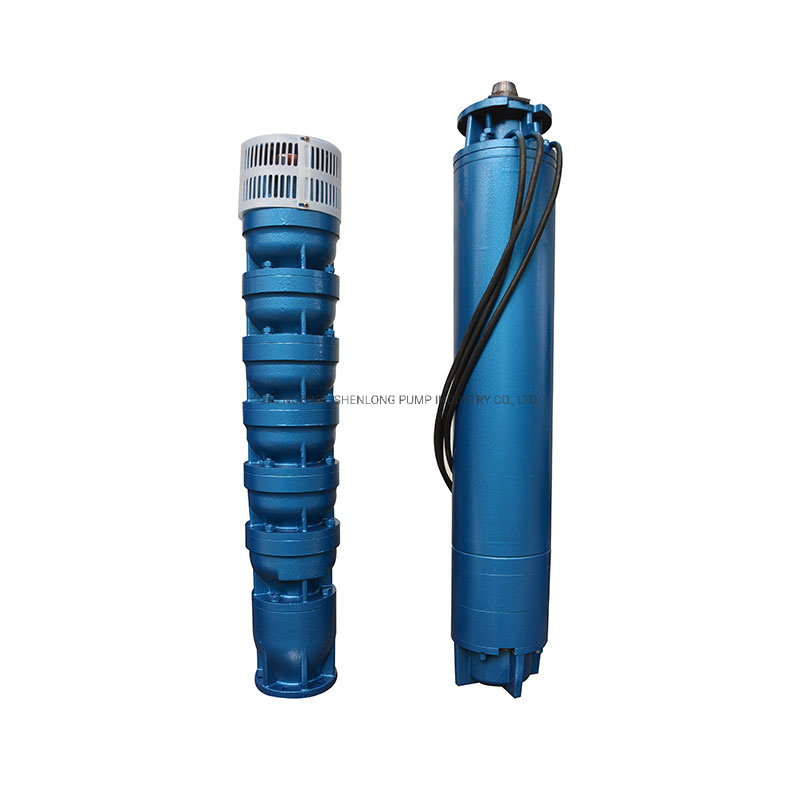

90KW submersible pump in Ethiopia

The 90KW submersible deep well pump has the following models

Pump Diameter Model Power Flow range Head range
Inch (“) QJ type kw hp m3/h m
10″ 250QJ50-360/18 90 120 46-54 330-390
10″ 250QJ50-380/19 90 120 46-54 350-410
10″ 250QJ63-300/15 90 120 58-68 205-343
10″ 250QJ80-220/11 90 120 75-86 190-250
10″ 250QJ80-240/12 90 120 75-86 204-276
10″ 250QJ100-198/11 90 120 80-120 170-231
10″ 250QJ125-144/9 90 120 116-134 124-164
10″ 250QJ125-160/10 90 120 116-134 136-184
10″ 250QJ140-135/9 90 120 130-145 114-156
10″ 250QJ160-120/8 90 120 148-172 102-138
12″ 300QJ200-100/5 90 120 186-214 85-115
14″ 350QJ250-75/3 90 120 233-267 72-78
14″ 350QJ320-60/2 90 120 305-335 57-63
16″ 400QJ500-40/1 90 120 388-416 48-52
18″ 450QJ1000-16/1 90 120 900-1200 12-20
20″ 500QJ640-28/1 90 120 600-680 26-30

90KW 6 inch submersible pump feature

1. Submersible Pump high head water pump centrifugal submersible pump is simple structure,easy installation, convenient
operation and maintenance.
2. Pump is equipped with inner motor, and special designed for whole submerge work. (Electrical machine and pump wok
as a whole, it’s safe very much.)
3. It is suitable to transport water for extraction of deep groundwater, can also be used in deep well, rivers, reservoirs
and ditch water projects.
4. The centrifugal submersible pump is mainly used for irrigation and livestock water system, also for city, factory,
railways, mining, water supply and drainage construction site.
5. Stainless steel submersible pump for models less than DN100mm(4inch) and cast iron pumps for models with larger diameter.

Post time: 2021-12-07
