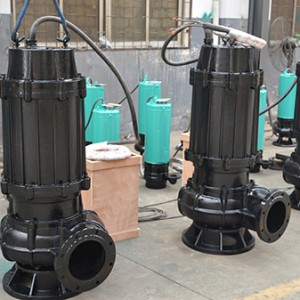

UAE customers purchased 20 units 15KW 20HP WQ200-220-12 Submersible Sewage Pump
WQ200-220-12 15KW 215M3/H Submersible Sewage Pump Data
Product name: WQ200-220-12 sewage water pump
Site: United Arab Emirates
Product No: WQ200-220-12
Rated flow: 215m3/hr
Rated head: 10m
Main power supply: 380v,50hz,3phase
Type of impeller: CLOSED
Impellor stages: single
shaft seal: Mechanical seal
Curve tolerance: ISO9906:2012 3B
Cooling Type: OIL COOLING
Pump housing: cast iron
Impeller: cast iron
shaft: 45# steel
Bearing cast iron
Motor: cast iron
Location: Outdoor
Flange standard: GB
Pump inlet: FILTER
Discharge diameter: DN 200mm
Pressure stage: PN 10
Maximum submerged depth: 20 m
Inst dry/wet: SUBMERGED
Installation: VERTICAL
Pumped liquid: sewage water
Maximum liquid temperature: 40℃
Liquid temp: 38℃
Relative density: 1.157
viscosity: 3-6pas
corrosive: no
Solid content: ≤3%
Number of poles: 2
Rated power : 15kW 20HP
Mains frequency: 50 Hz
Rated voltage: 380 V
Rated speed: 2900 rpm
Insulation class F
IP class: IP68
Voltage tolerance: =10/-10%
Start. method: soft start
Max starts per. hour: 20
Rated current: 33.9 A
Cos phi – power factor: 0.83
Cos phi – p.f. at 3/4 load: 0.75
Cos phi – p.f. at 1/2 load: 0.61
Motor efficiency at full load: 81.00%
Motor efficiency at 3/4 load: 70.00%
Motor efficiency at 1/2 load: 67.00%
20HP 15KW 215M3/H 10M Head Sewage Water Pump Features
Semi-open impeller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability.
Greatly increase maximum submersion depth due to mechanical seal resistant to high pressure.
The body of motor and pump is made of rigid cast iron for long lasting durability.
Effective motor cooling due to discharge channel cast as part of the motor housing.
Hermetically sealed motor equipped build-in thermal protection for the power below 15kW.
11KW 15HP – 75KW 100HP Submersible Sewage Pump Manufacture
We have many different models of cast iron electric sewage pump, If you cannot find suitable model, just CONTACT US for suggestion, I will choose a suitable model for you. We have cast iron, stainless steel 304 or 316. We can customize 380V, 400V, 415V drainage pump as your request.
PDF: 15KW 20HP 215M3/H 10M Head Sewage Water Pump Technical Sheet
