Malaysian customer ordered submersible pump 50ZQ30-25 and the motor power is 4KW. The pump material is abrasion-resistand alloy and it’s resistant to abrasion and corrosion.

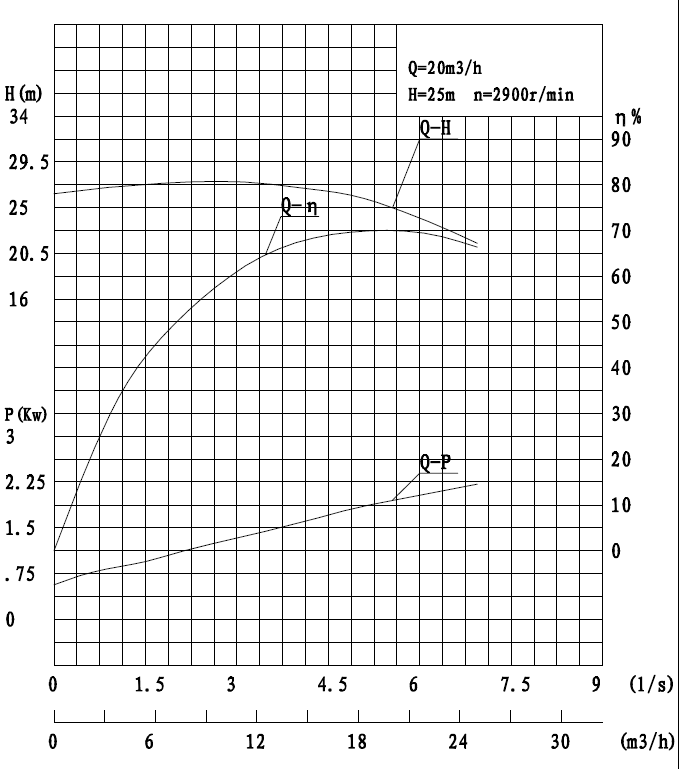

the pump specification and performance curve in the below:
4kw Sea Water Submersible Pump Technical:
Product Model: 50ZQ30-25
Rated flow: 20m³/h
Rated head: 25m
Main power supply: 3phase/380V/50Hz
Type of impeller: enclosed
Impeller stages: 1
Shaft seal: mechnical seal
Cooling Type: water cooling
Cable: 10m
Weight 90kg
4kw Sea Water Submersible Pump Main Materials:
Pump casing: Gr26
Impeller: Gr26
Shaft: Gr40
4kw Sea Water Submersible Pump Installation:
Outlet diameter: 50mm
Max. through particles: 10mm
Coupling: GAK-50
Inst dry/wet: submerged
Installation: vertical
Max.diving depth: 20m
4kw Sea Water Submersible Pump Liquid:
Pumped liquid: Sea water with sand
Maximum liquid temperature: 40℃
Relative density: 1400kg/m3
Viscosity: 3-6Pas
Ph: 4-10
4kw Sea Water Submersible Pump Electrical data:
Number of poles: 2
Rated power : 4kW
Mains frequency: 50 Hz
Rated voltage: 380V, 3phase
Rated speed: 2900rpm
Insulation class F
IP class: IP68
Voltage tolerance: =10/-10%
Pump Efficiency: 70%
Working system: S1
Post time: 2021-12-03
