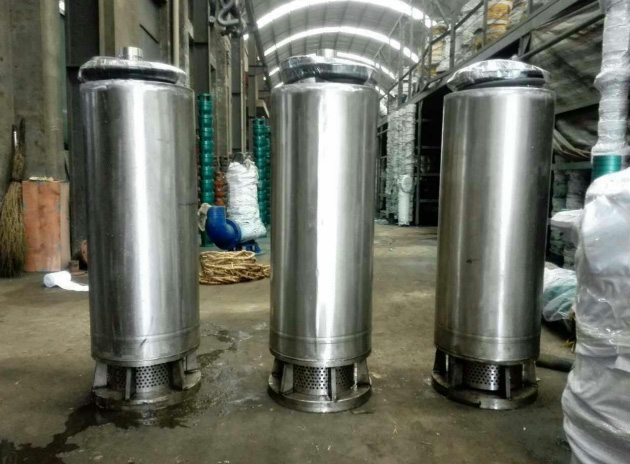

Cambodia purchased our stainless steel submersible pump for the second time, the customer purchased a 120kw submersible pump for the first time, this time the Cambodian customer’s new project requires a 75kw stainless steel submersible pump:
Capacity:450 m3/h
Installation: vertically
Type: Submersible river pump
Head: 35m
Liquid: Clean river water 20-40 ℃
Motor :30m cable with all cable connection accessories
According to the needs of Cambodian customers, Shenlong Pumps recommended the following models of pumps to customers
75kw SS submersible water pump data
Product name: 75kw SS submersible water pump
Product No: WQX450-35
Site: Cambodia
Rated flow: 450m3/hr
Rated head: 35m
Main power supply: 400v,50hz,3phase
Type of impeller: CLOSED
Impellor stages: 1
shaft seal: Machnical seal
Curve tolerance: ISO9906:2012 3B
Cooling Type: Oil FILLED
Pump efficiency: 76%
Pump housing: SS304
Impeller: SS304
shaft: 45# steel
Bearing SS304
Motor: Cast iron
Location: Outdoor
Flange standard: GB
Pump inlet: FILTER
Discharge diameter: DN200mm
Pressure stage: PN 10
Maximum submerged depth: 20 m
Inst dry/wet: SUBMERGED
Installation: Vertically
Pumped liquid: clean river water
Maximum liquid temperature: 40℃
Liquid temp: 38℃
Relative density: 1.025
viscosity: 0.861
corrosive: yes Sand content: ≤150g/m3
Max allowed particle size 25mm
Number of poles: 2
Rated power : 75 kW
Mains frequency: 50 Hz
Rated voltage: 400 V
Rated speed: 2900rpm
Insulation class F
IP class: IP68
Voltage tolerance: =10/-10%
Start. method: soft starter
Max starts per. hour: 20
Rated current: 152.3A
Rated efficiency : 84.0%
Cos phi – power factor: 0.84
Cos phi – p.f. at 3/4 load: 0.82
Cos phi – p.f. at 1/2 load:
Motor efficiency at full load: 83.00%
Motor efficiency at 3/4 load: 79.00%
Motor efficiency at 1/2 load: 69.00%
Certificate: CE/ISO9001/ISO14001
Stainless steel submersible pump manufacturer
Shenlong Pump has a variety of stainless steel submersible pumps, and customers from all over the world are welcome to purchase. Our customers love the service they get from us because we take the time to talk through their needs, and select the right combination of tools. We are always ready to help. You will not find this combination of low prices, great service and sound advice anywhere else. With locations in China, we can get you thousands of products in 2-3 business days.
PDF: 75KW 450 M3/H Stainless Steel Submersible Pump WQX450-35 Structural Drawings
PDF: 75KW 450 M3/H Stainless Steel Submersible Pump WQX-450-35 Technical Sheet
